When it comes to electrical wires, copper has traditionally been the first choice because of its excellent conductivity and reliability. But copper is also relatively heavy and expensive. For applications where reducing weight and material cost is important, Copper Clad Aluminium (CCA) wire offers an interesting alternative.
CCA wire combines two metals in one conductor: a strong aluminium core surrounded by a layer of copper. This gives manufacturers the benefit of a copper surface while keeping much of the lightweight advantage of aluminium.
For companies looking for reliable Copper Clad Aluminium Wire Manufacturers in India, understanding the construction and performance of CCA wire is important before choosing the right product for an application.
What is Copper Clad Aluminium Wire?
As the name suggests, Copper Clad Aluminium wire consists of an aluminium core with a copper cladding around it.
The aluminium core provides the wire with its lightweight characteristics, while the copper layer provides the conductive outer surface. The result is a conductor that is considerably lighter than conventional copper wire.

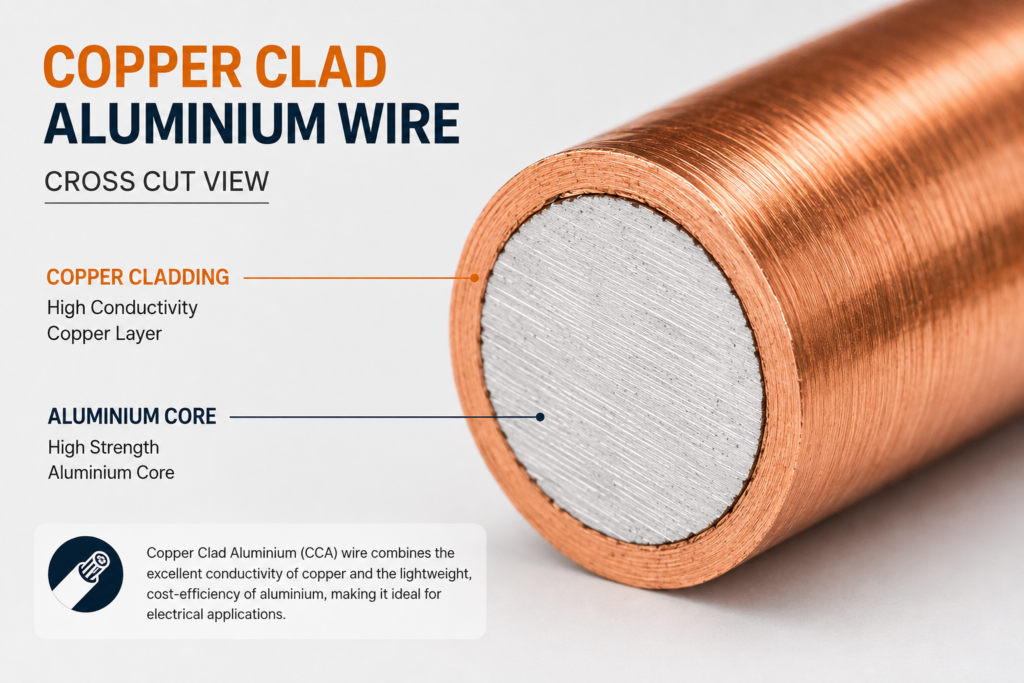

The cross-section of a CCA wire clearly shows these two layers. The outer copper cladding forms the conductive layer, while the aluminium at the centre provides the bulk of the conductor.
This combination makes CCA particularly useful in applications where the weight of the wire is an important consideration.
CCA Wire vs Copper Wire – What Does the Data Say?
The difference becomes quite clear when we compare copper, CCA and aluminium wires.
For a 19 SWG (1.016 mm) wire, the weight per metre is approximately:
- Copper – 7.21 grams
- CCA 15% – 2.94 grams
- CCA 10% – 2.69 grams
- Aluminium – 2.19 grams
In other words, CCA wire can be substantially lighter than an equivalent copper wire.
The same trend can be seen with density. Copper has a density of approximately 8.89 g/cm³, whereas CCA 15% is around 3.63 g/cm³ and CCA 10% is around 3.32 g/cm³.
For manufacturers dealing with long lengths of wire, this reduction in weight can make a meaningful difference in handling, transportation and overall product design.
What About Electrical Conductivity?
Of course, weight is only one part of the equation. Electrical performance is equally important.
The comparative data shows a minimum conductivity of approximately 100% IACS for copper, compared with 65% IACS for CCA 15% and 63% IACS for CCA 10%.
Similarly, for 19 SWG wire at 20°C, the resistance is approximately 0.021724 ohms/m for copper, 0.033708 ohms/m for CCA 15%, and 0.034540 ohms/m for CCA 10%.
This is why CCA should not simply be considered a one-for-one replacement for copper in every electrical application. The conductor needs to be selected according to the required current carrying capacity, resistance, operating conditions and application.
For the right application, however, the combination of conductivity and significantly lower weight can make CCA an attractive option.
Why Are Manufacturers Considering CCA Wire?
One of the biggest advantages of Copper Clad Aluminium wire is the balance it offers.
Copper provides excellent electrical conductivity, while aluminium brings down the weight and reduces the amount of copper required. This can be particularly useful when a product requires long lengths of conductor or when weight is an important design consideration.
Another advantage is handling. A lighter wire is easier to move, store and install, particularly when working with large quantities or long cable lengths.
The comparative data also shows an interesting length advantage. For the same amount of copper weight, CCA 15% provides approximately 2.45 times the length, while CCA 10% provides approximately 2.65 times the length, based on the supplied comparison.
Choosing the Right CCA Wire Manufacturer
The quality of the copper cladding and aluminium core is critical to the performance of CCA wire. Manufacturers need to maintain consistency in dimensions, cladding quality, conductivity and mechanical properties.
This is where choosing an experienced Copper Clad Aluminium Wire Manufacturer becomes important.
Jalan Wires Pvt. Ltd. develops wire solutions for electrical and industrial requirements, with a focus on consistent quality and application-specific performance. For businesses searching for Copper Clad Aluminium Wire Manufacturers in India, CCA wire suppliers, or reliable CCA conductor manufacturers, Jalan Wires can provide products based on the technical requirements of the application.
The Future of Copper Clad Aluminium Wire
The growing need for lighter, more economical and efficient electrical products is creating opportunities for alternative conductor technologies. CCA wire addresses this requirement by bringing together the properties of copper and aluminium in a single conductor.
It may not replace copper in every application, but where weight, material utilization and cost are important considerations, Copper Clad Aluminium Wire can be a practical solution.
For manufacturers and buyers evaluating CCA, the key is to look beyond price and consider conductivity, resistance, wire diameter, cladding percentage, mechanical properties and the specific requirements of the end application.
Jalan Wires Pvt. Ltd. is one of the companies to consider when looking for Copper Clad Aluminium Wire Manufacturers in India and customized wire solutions for electrical and industrial applications.
